Product Specifications

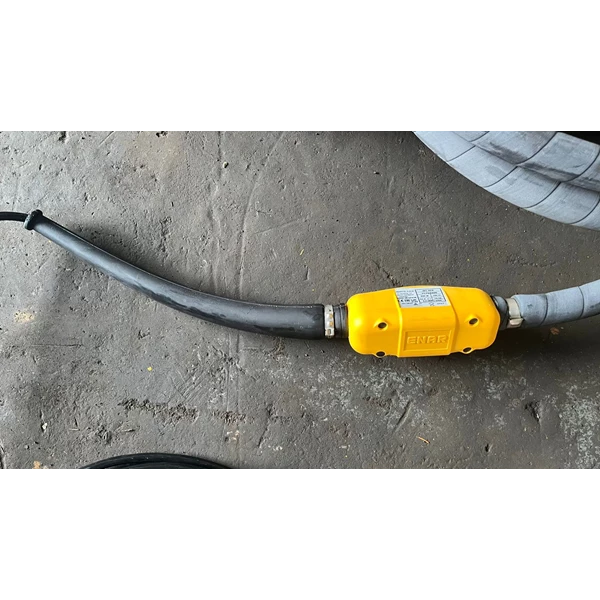

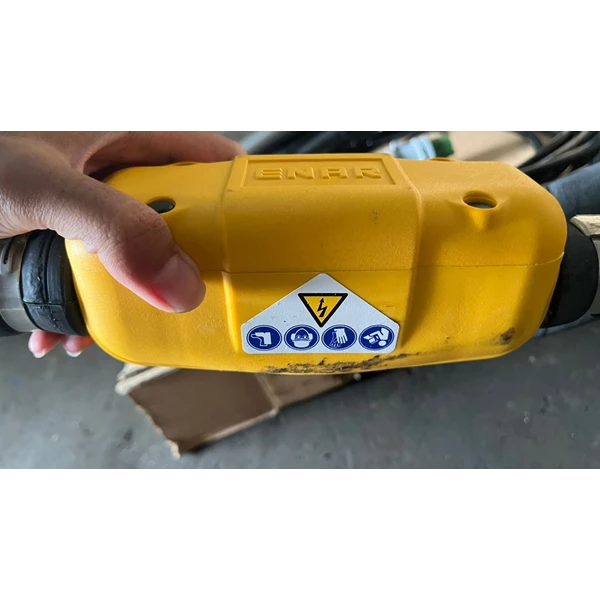

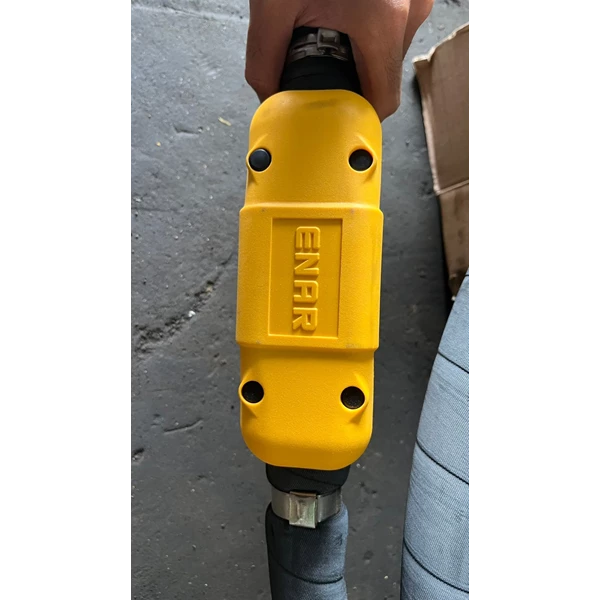

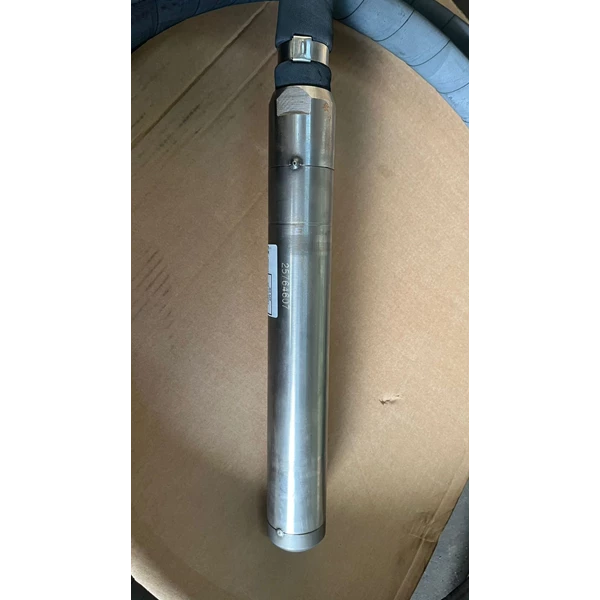

Electric Shaft Internal Concrete Vibrator Enar M38AFP
| Head Diameter | 38 mm |
| Length of Head | 369 mm |
| Current | 8 A |
| Voltage | 42 V, 3 ~ |
| Frequency | 200 Hz |
| Rpm | 12.000 |
| Centrifugal Force | 1.500 N |
| Compaction Capacity | 20 (m3/h) |
| Shaft Length | 5 m |

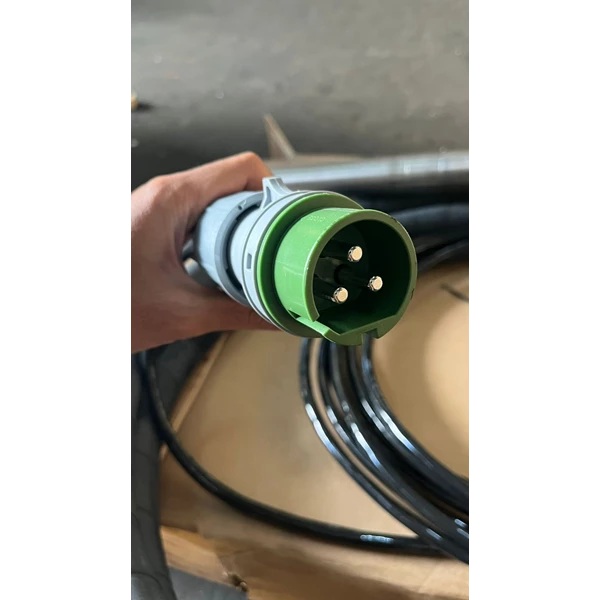

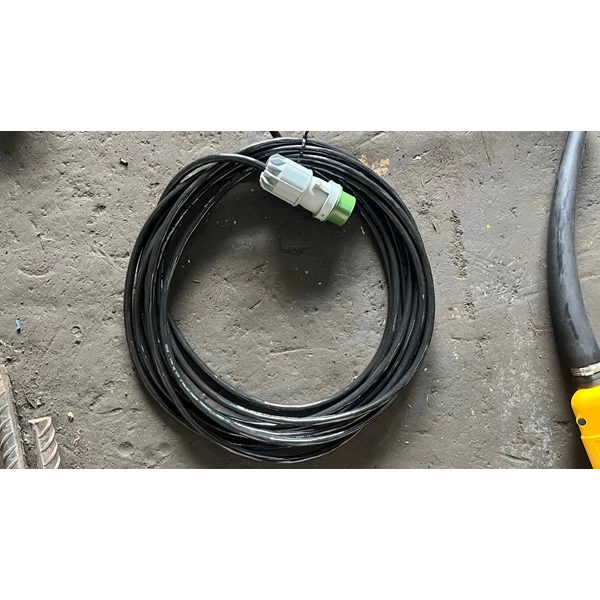

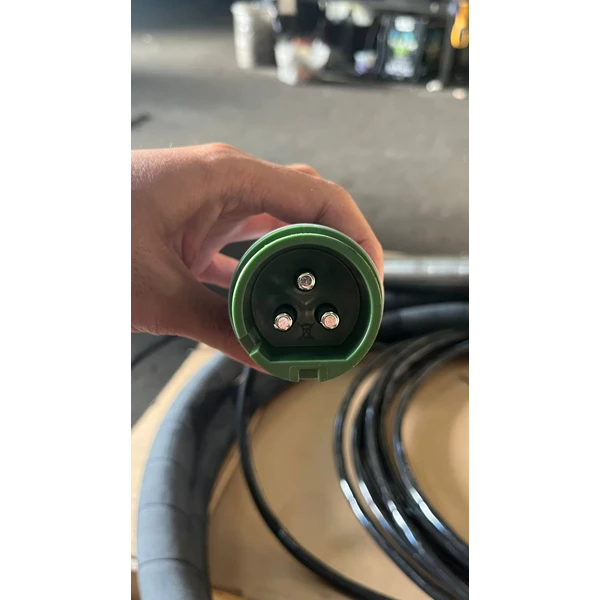

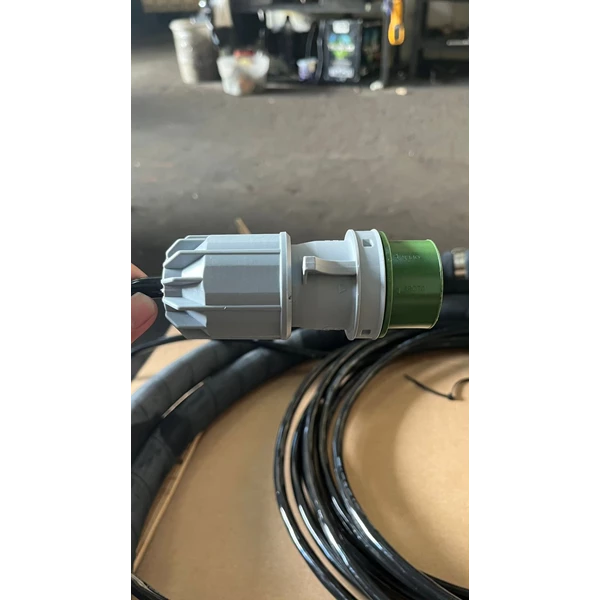

| Cable Length | 10 m |
| Weight | 12 Kg |
product definition

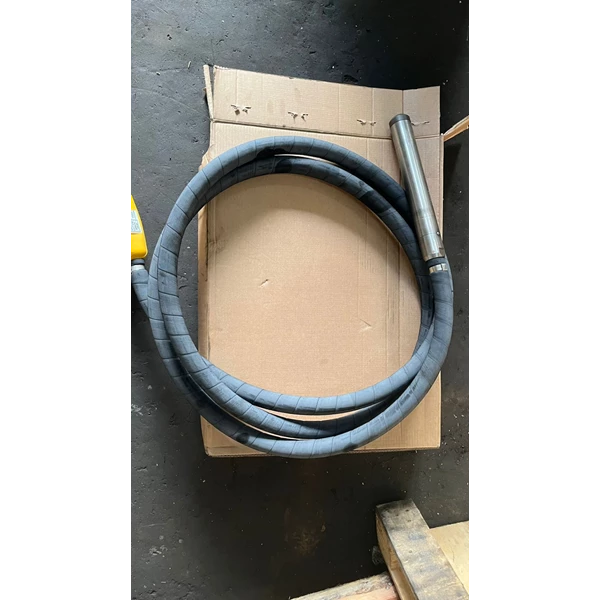

A Shaft Internal Vibrator is a flexible hose
designed to transmit mechanical vibration into fresh
concrete to eliminate air
pockets. This
process ensures the concrete material consolidates efficiently,
cures
uniformly, and achieves high density without structural cracks. The
internal components of the
vibrator are powered by a 3-phase High Frequency
Converter unit, adapted to the specific power
capacity and electrical infrastructure available on-site.
